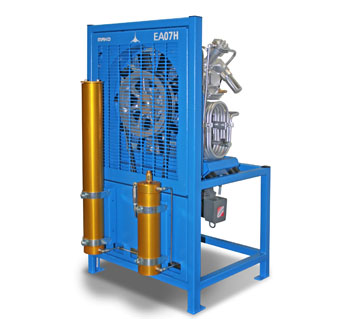

EconoAir


Model: EA

A breathing air compressor built to fit your budget. The EconoAir includes the Mako compressor and purification system ensuring quality at reasonable prices. Constructed in accordance with state-of-the art technology and many years of research and development, the EconoAir is sure to fit your application needs and your budget.

Features:

  • MK2C purification system
  • Industrial-duty 3 or 4 stage compressor block
  • NEMA design ODP 1.15 SF electric motor
  • Open design; rugged structural steel
    frame with heavy duty powder coat finish
  • Easy maintenance access
  • Auto-drain with muffler/reservoir
  • Small package footprint and overall dimensions
  • Anti-vibration mounts
  • Fully automatic control system
  • Instrumentation & controls:
    • PLC controller
    • Illuminated on/off push buttons
    • Hours run meter
    • Emergency stop button
    • Final stage pressure gauge
    • Individual shutdown indicators for High Air Temperature,
      High Air Pressure, and Low Oil Level/Pressure
  • Breathing air purification is standard
EconoAir™ PERFORMANCE
Model
CFM*
PSIG
(Bar)
HP
Weight
Lbs (Kg)
Stages of
Compression
EA05
8.6 (14.6)
5000(350)
7.5
626 (284)
3
EA06X
10.2 (16.7)
6000(414)
7.5
560 (255)
3
EA06H
14 (23.8)
6000(414)
10
570 (260)
3
EA07H
20.7 (35.2)
6000(414)
15
585 (266)
3
